The Siemens Sinumerik 3M and 3T controls are legacy CNC systems known for high reliability in demanding production environments. Establishing robust DNC communication requires precise configuration of serial interface parameters. Mismatched baud rates or incorrect handshaking protocols—specifically regarding XON/XOFF versus hardware RTS/CTS flow control—are frequent causes of transmission timeouts or data parity errors. To ensure consistent performance, verify that your machine parameters align strictly with your PC’s COM port settings. Proper shielding and the use of recommended cable pinouts are essential to mitigate signal interference and ground loops. When troubleshooting, confirm that parity bits and stop bits are synchronized across both ends; failure to match these settings often results in garbled characters or incomplete program transfers during high-speed DNC operation.
| Parameter | Value | Comments |
|---|---|---|
| 411 | 1110 1101 | = Baud Rate 2400 |
| 412 | 1110 1101 | See below for other baud rates |
| 1110 1011 = 600 1110 1100 = 1200 1110 1101 = 2400 1110 1110 = 4800 |
||
| 416 | 1xxxxxx1 | x = Do not change |

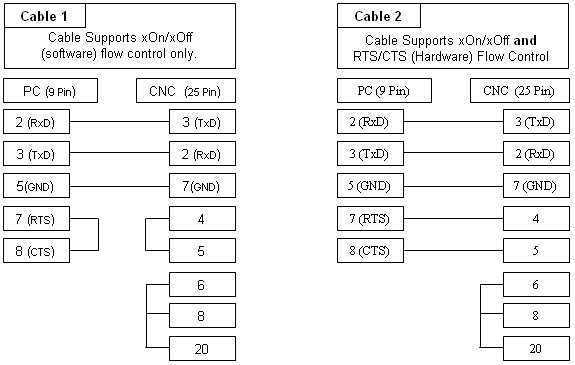

Cable Type 1 is widely used, but Cable 2 is recommended as it supports both software and hardware flow control, offering greater compatibility with a wider range of CNC types and operating modes.
